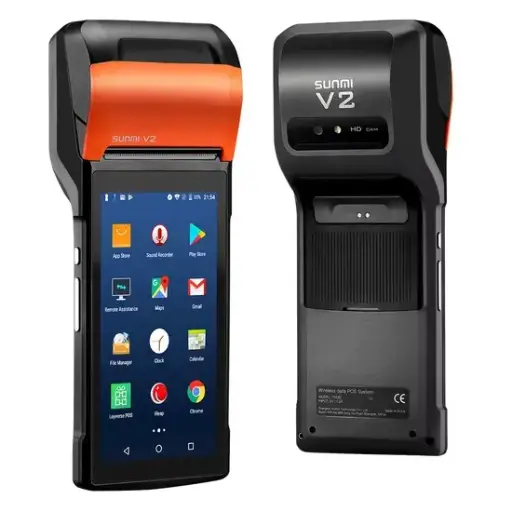

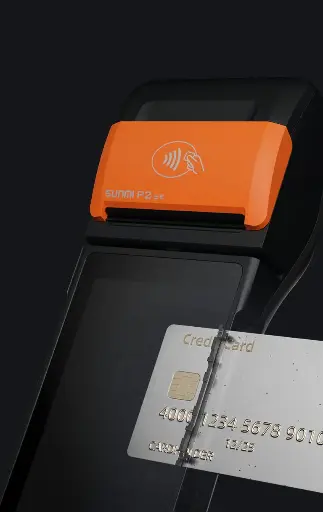

70mm/s Seiko Printer
95 dB Speaker
Double Space for Till Roll
5.0MP Camera, Flash, AF
5.45" IPS Display
7.6V Li-Polymer Battery
4G & Wi-Fi
Sleek 17.8mm Body Thickness

Main: 15.6" FHD，1920*1080
Capacitive multitouch screen
Second: 10.1"HD, 1024*600
Capacitive multitouch screenOS
Android 9.0
SUNMI OS
CPU
Kryo-260，Octa-core
up to 2.2GHz
Memory
32GB ROM+3GB RAM
64GB ROM + 4GB RAM (optional)
Camera
Face Recognition camera or
normal camera
(only for configuraion 2&3)
Speaker
1* 1.2W
SIM Card Slot
1* Micro SIM (optional)
Network
2G&3G&4G (optional)
Wi-Fi
2.4G/5.0GHz
IEEE 802.11 a/b/g/n /ac
Bluetooth
BT2.1/3.0/4.0/5.0
BLE
LAN
LAN 100M
Buttons
1* power button
2* volumn button
External Storage Card
Support Micro SD (TF)
Up to 64GB
External Port
5*USB TypeA
1*RJ11 Serial port
1*RJ12 Cash drawer port
1*RJ45 LAN port
1* Audio jack port
1*Power port
1* Micro-USB (debug)
Power Adapter
Input: AC100~240V/1.5A
Output: DC24V/1.5A
Dimensions
430*382*215mm
(max)
Total Weight
Configuration1: 4.5 Kg
Configuration2: 5.1 Kg
Configuration3: 6.8 Kg
Environment
Operating temperature:0°C ~ 40°C
Storage temperature: -20°C ~ 60°C

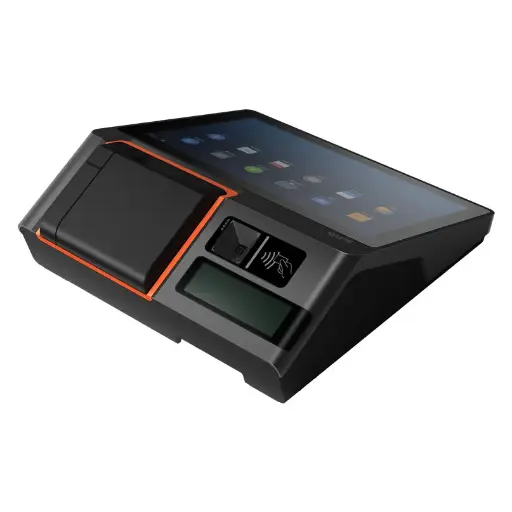

Model Approved
Config 1: L1323 (80mm printer +WIFI)
Config 2: L1323 (80mm printer + NFC + Scanner+4G)
OS
Android OS
SUNMI OS
CPU
Cortex-A53
octa-core 1.4GHz
Memory
2GB RAM + 16GB ROM
Display
Capacitive multitouch
Main Display：
11.6" FHD 1920*1080
Secondary Display:
LED Display，FSTN ,128*40
Camera
0.3MP
Supports 1D/2D barcode recognition (Config 2)
Printer
Built-in 80mm thermal printer
Auto cutter: equipped
Print speed: 160mm/s
Service life: 100Km, Paper roll: Φ60mm
NFC Card Reader
Supports Type A&B card,
Mifare card, Felica card
ISO/ICE 14443 compliant
Scanner
Supports 1D/2D barcode recognition
(Config 2)
Speaker
1* 1.2W
SIM Card Slot
1* MINI SIM (Config 2)
Network
2G & 3G & 4G (Config 2)
Wi-Fi
2.4GHz
Supports IEEE 802.11 b/g/n
Bluetooth
Supports Bluetooth 2.1/3.0/4.2
Supports BLE
Wired Network
LAN 100M
Button
1* Power (lock screen) button
2* Volume (+/-) button
TF Card
1* MicroSD (TF)
Up to 64G
Ports
4* USB Type A port
1* RJ11 serial port
1* RJ12 cash drawer port
1* RJ45 LAN port
1* Audio jack
1* Power port
1* Micro USB debug port
Power Adapter
Input: AC100~240V/1.7A
Output: DC24V/2.5A
Dimensions (L*W*H)
294*303*107mm
Total Weight
2.0Kg
Environment
Operating temperature: 0°C~40°C
Storage temperature: -20°C~60°C

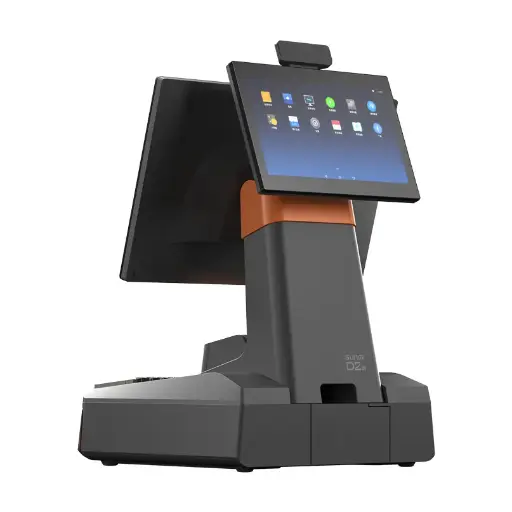

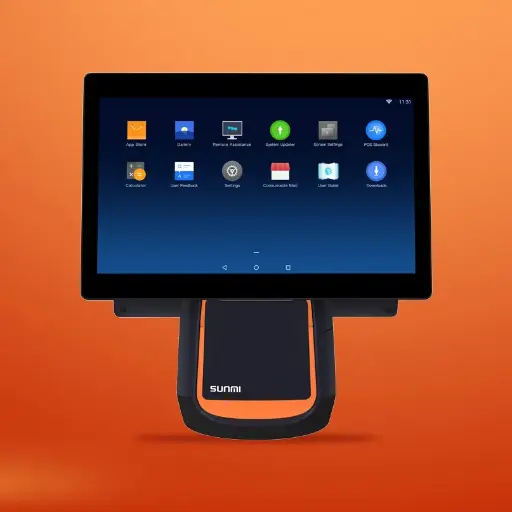

Display15.6"+10.1"
Main screen: 15.6" FHD,
1920×1080
Customer screen: 10.1" FHD,
1024×600

OS
Android OS
SUNMI OS
CPU
1.6GHz
Memory
2GB RAM+8GB ROM
Printer
Built-in high-speed 58 thermal
printer
Touch Screen
Capacitive multi-touch screen

Wi-Fi
2.4G Support IEEE 802.11 b/g/n
Bluetooth
Support Bluetooth 2.1/3.0/4.2
Support BLE
Button
Power button (lock screen)
Speaker
3W
External Memory Card
Support MicroSD(TF)
up to 64G
External Port

5 x USB Type-A port
1 x RJ11 serial port
1 x RJ12 cash drawer port
1 x RJ45 LAN port
1 x Audio jack
1 x Power port
1 x Micro-USB debug port
Power Adapter
Input: AC100-240V/1.7A
Output: DC24V/2.5A

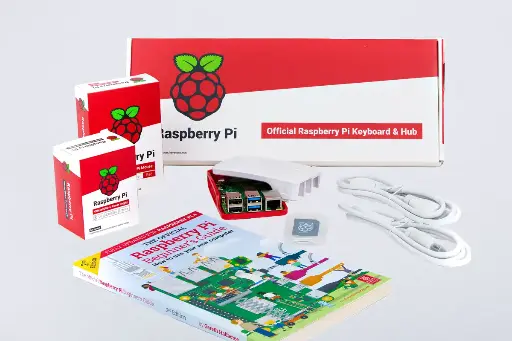

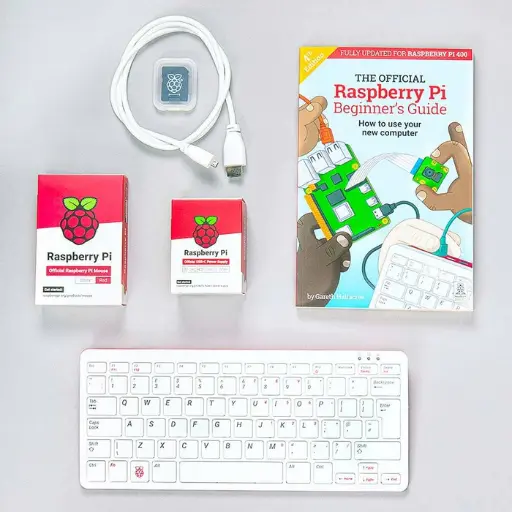

Raspberry Pi 4 Desktop kit is supplied with:

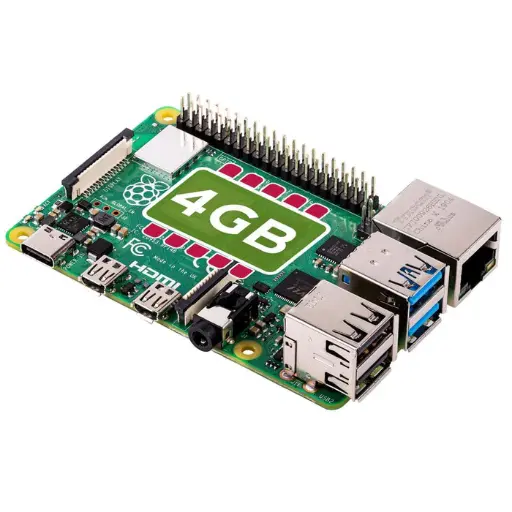

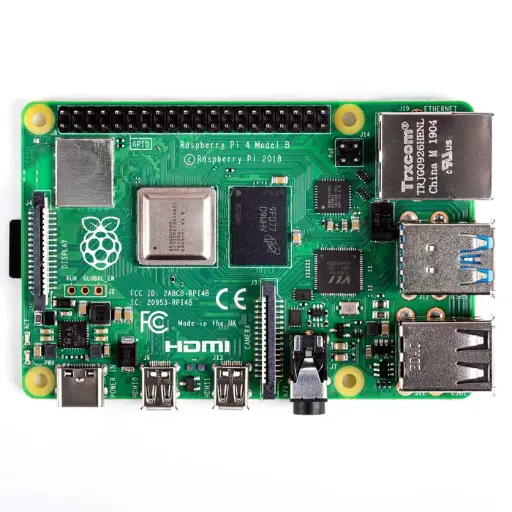

Raspberry Pi 4 Model B (2GB, 4GB or 8GB version)

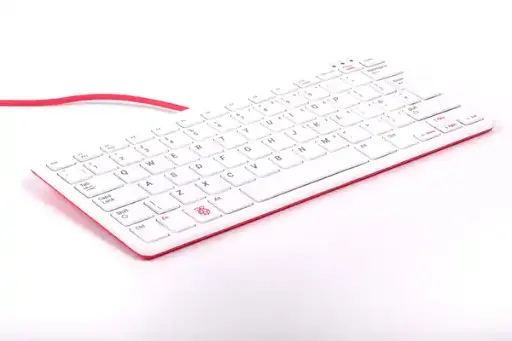

Raspberry Pi Keyboard & Mouse
2 × micro HDMI® to Standard HDMI (A/M) 1m Cables
Raspberry Pi 15.3W USB-C Power Supply
Raspberry Pi 4 Case
Official Raspberry Pi Beginner's Guide (English language)
16GB microSD card pre-loaded with Raspberry Pi OS
